Benefits
- Ability to mix dry concrete to wet with a high capacity
- Battery powered carrier offers zero-emissions, enhances safety, reduces maintenance, and saves on ventilation costs.
- Heavy-duty frame construction
EV

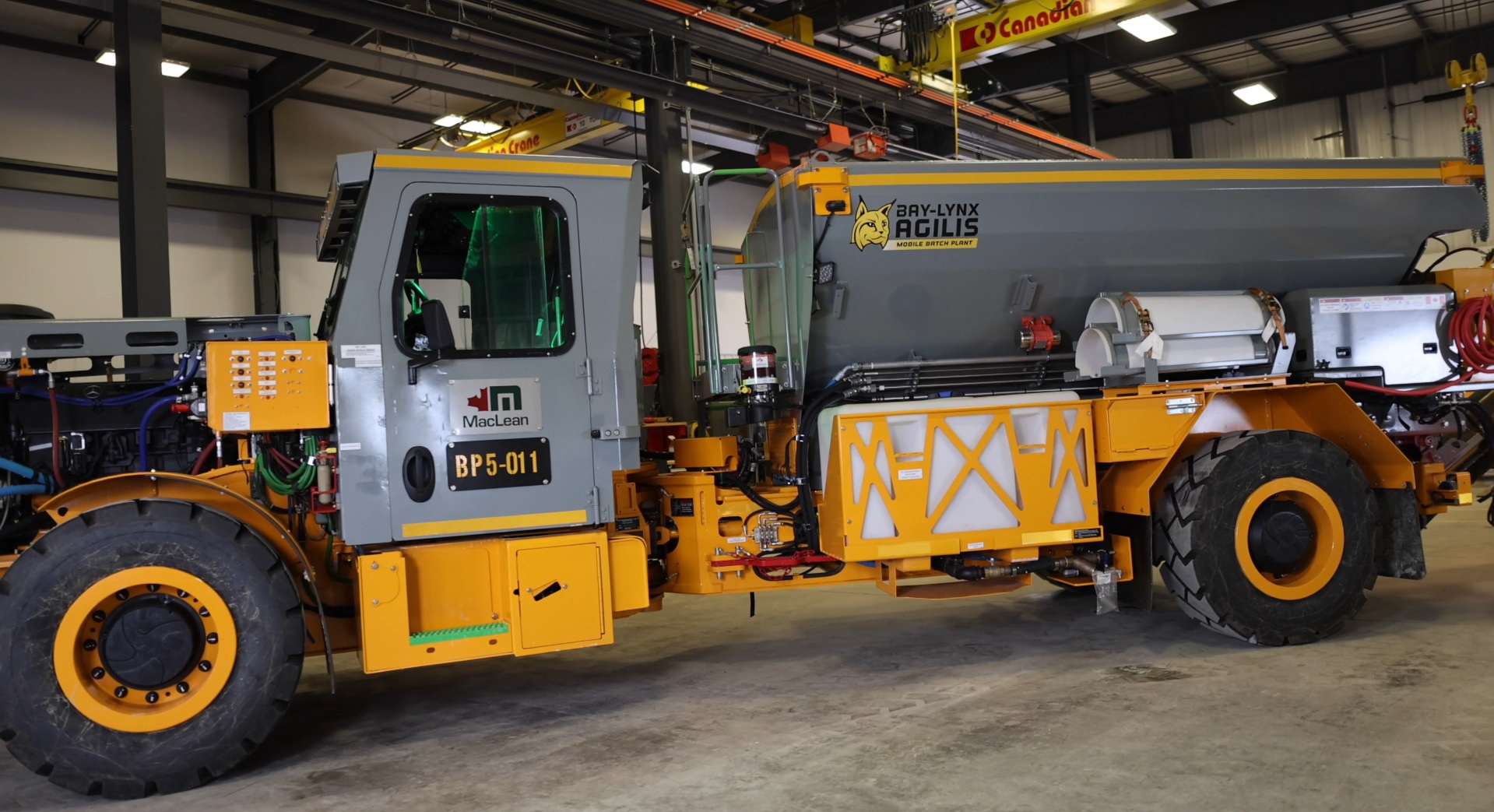

BP5 EV Mobile Batch Plant
The use of sprayed concrete in underground environments requires reliable equipment to ensure a high-quality final product can be provided where needed, when needed. By utilizing the proven Agilis system, the battery-electric BP5 BEV Mobile Batch Plant is an integral part of the wet shotcrete process and provides the ability to batch dry-mix on the spot to wet-shotcrete or concrete, all with minimal wash-down. The BP5 provides a solution for high–capacity, high–speed transport of dry mix, while experiencing the material benefits of wet shotcrete. As with all MacLean equipment, this machine is specifically designed for the underground environment.
Features
- Batch dry ready mix to wet shotcrete or concrete in real-time
- 6m³ (7.85 cubic yards) dry hopper
- 757L (200 US Gal)water reservoir
- Batching rates can exceeds 50 m3 (65 cubic yards) an hour, provided hopper has supply of dry material
- Onboard water tanks for batching material to supplement site water supply rates
- 3.3 m(10.8 ft) mixing auger with up/down capabilities
Application
- The BP5 Mobile Batch Plant provides the ability to mix dry concrete to wet anywhere underground, while maintaining high-capacity, speed, and ease-of-use
Specifications
| BP5 EV | |
|---|---|
| Empty | 15,900 kg (35,000 lbs) |
| Width | 2.49 m (98”) |
| Length | 10.93 m (431”) |
| Tramming Height | 2.79 m (110”) |
| Steering Angle | +/- 40° |
| Inside Turning Radius | 6.11 m (240”) |
| Outside Turning Radius | 9.01 m (355”) |
